      Introducing the NEW BinTalk Pro!

      Features of the BinTalk Pro sensor, and how to install.

      Technical Specifications & Features

      Smart Monitoring from Bin to Barn Brochure

      Unmatched Accuracy

      • 4-camera Direct Time-of-Flight (dToF)
        technology for maximum accuracy
      • Expanded field of view, covering twice
        the area of previous models
      • Automotive-grade camera and sensor
        technology ensuring reliability
      • Accurate measurements at distances
        from 1 inch up to 30 feet





      See More, Act Faster

      • Automatic self-calibration for ongoing

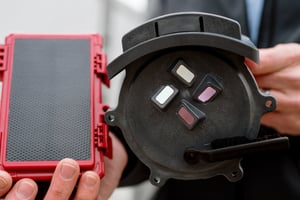

        accuracyDSC_3843
      • Smart wiper system with anti-static,
        dust-repelling glass
      • Dust detection activates cleaning only
        when necessary, preserving battery life
      • Proximity detection prevents
        unnecessary wiper activation when feed
        is close

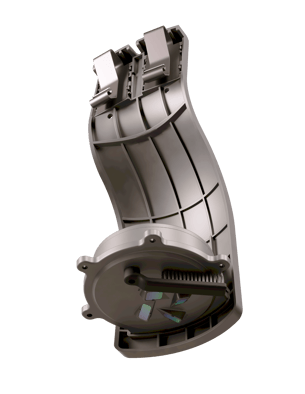

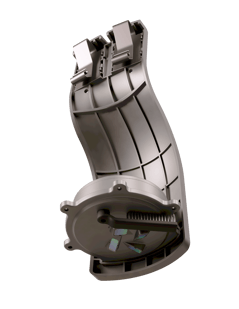

      BarnTalk Pro Hardware - Front

      Ultra-Durable

      • Heavy-duty bracket securely mounts sensor without screws
      • Superior cable management eliminates
        damage risk
      • IP68 waterproof design. Operates in
        harsh conditions -30°F - 140°F (-35°C -
        60°C)Internal slope angle measurement aids
        precise self-calibration

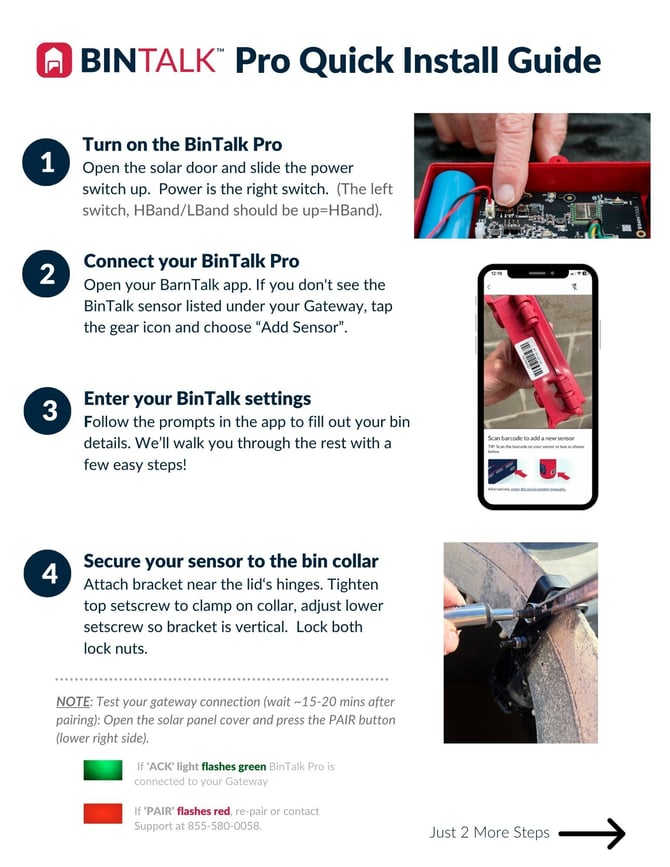

      Installing BinTalk Pro

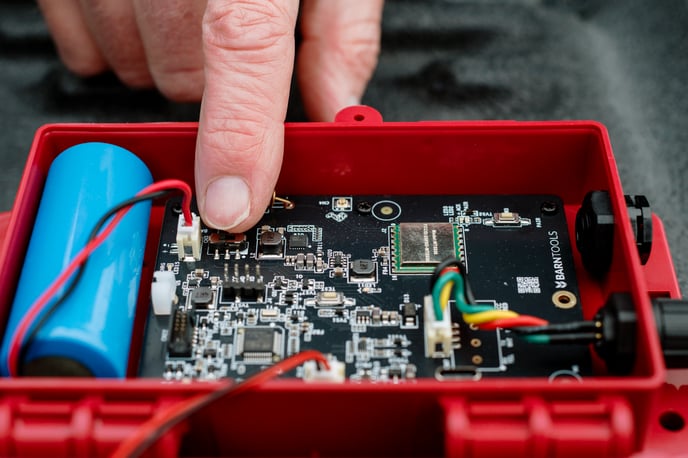

      1. DSC_3893Turn on the sensor by opening the solar door and sliding the power switch on.
      2. Pair the sensor by opening the app, selecting your gateway, and choosing "Add Sensor" under the gear icon.
        1. If the sensor is already listed under the gateway, this step can be skipped.
        2. More details on how to pair a sensor here.

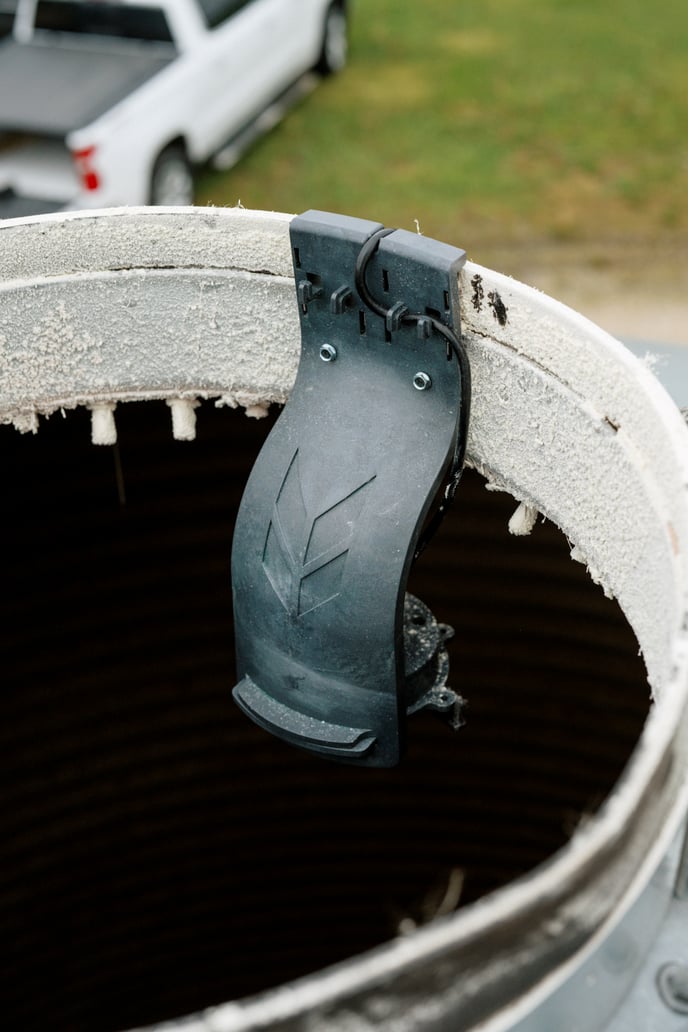

      3. DSC_3973Optional: set the bin dimensions by following the prompts on the screen.
        1. BinTalk Pro can auto-calibrate once the bin is empty, so this step can be skipped.
      4. Secure the sensor to the bin collar and make sure it's straight up and down. We recommend using the self-tapping screws to secure it tightly.

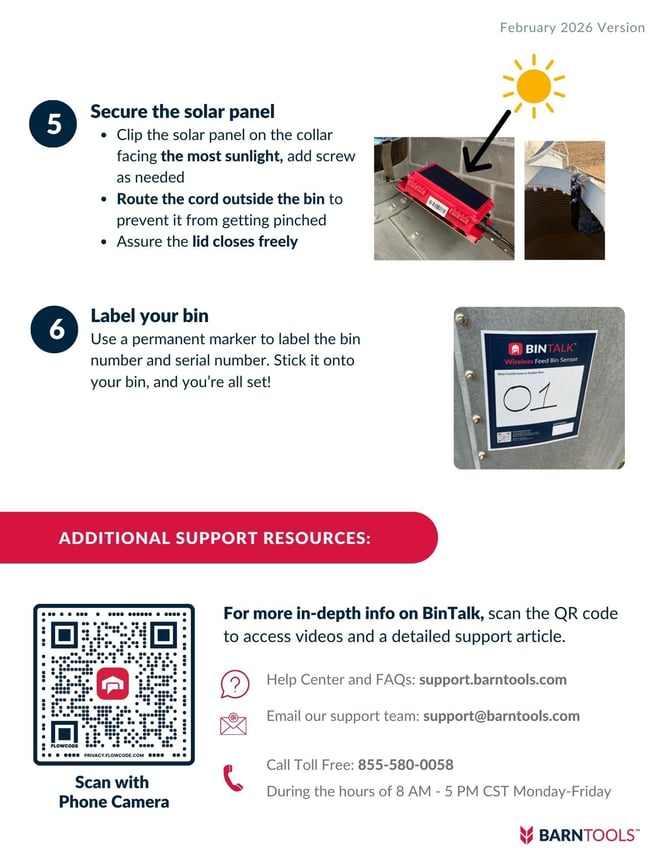

      5. Attach the magnetic solar panel to the side of the bin with the most sunlight. Route the cord outside the bin to prevent it from getting pinched.

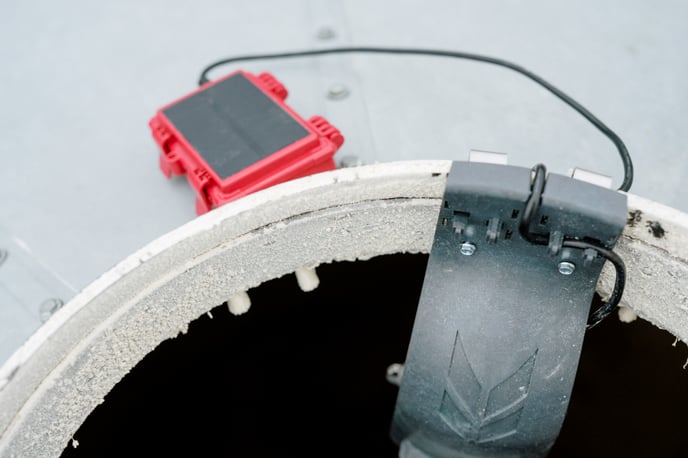

      6. DSC_3996Test the sensor connection to the gateway. Open the solar panel cover and press the PAIR button on the lower right side.
        1. If 'ACK' light flashes GREEN, the sensor is connected.
        2. If 'Pair' flashes RED, it is not connected.
          1. Check the app to make sure the sensor is paired. If it does not show in the sensor list, repeat step 2.
          2. If the sensor does show in the app, it may be too far away from the image-2gateway/sensor antenna to establish a connection. Follow our guidelines here for best antenna placement.

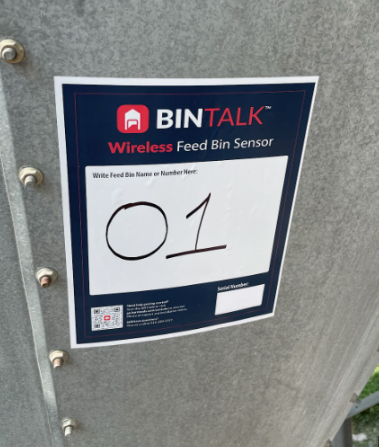

      7. Label the bin using a permanent marker on the sticker provided with each sensor.













      If you have any issues or feedback, reach out to our support team via email at support@barntools.com, or call/text Toll Free at 855-580-0058 during the hours of 8am-5pm CST Monday-Friday.
